Biomedical Research

An International Journal of Medical Sciences

Special Issue Article - Biomedical Research (2018) Medical Diagnosis and Study of Biomedical Imaging Systems and Applications

The optimal decoction time of Yinqiao Powder on inhibit influenza A virus FM1 in mice

Liang Chang1, Jinchuan Tan2, Fang Liu1, Guangjie Liu1, Yaxian Liu1 and Bingjie Huo1,3*

1Department of Traditional Chinese Medicine, Fourth Hospital of Hebei Medical University, Shijiazhuang, PR China

2Department of Nephrology, Traditional Chinese Medicine of Hebei province hospital, Shijiazhuang, PR China

3Tianjin University of Traditional Chinese Medicine, PR China

*Corresponding Author:
Bingjie Huo
Department of Traditional Chinese Medicine
Fourth Hospital of Hebei Medical University, PR China

Accepted on March 22, 2017

DOI: 10.4066/biomedicalresearch.29-16-1746

Visit for more related articles at Biomedical Research

Abstract

Background: Yinqiao Powder (YQP) is administered in Traditional Chinese Medicine (TCM) for febrile infectious diseases and has been demonstrated to fight the prevalence of influenza.

Objective: The present study aimed to identify the optimal decoction time of YQP on inhibit influenza A virus FM1 and investigate the molecular mechanisms of different decocting time YQP.

Methods: The male BALB/c mice were made into pneumonia model of influenza A virus FM1. They were randomly assigned to twelve groups: blank control group, model control group, tamiflu (27.5 mg/Kg) group, 3 minutes YQP (High-dose group 30 g/Kg·d, Middle-dose group 15 g/Kg·d, and Low-dose group 7.5 g/Kg·d) groups, 6 minutes YQP (High-dose group 30 g/Kg·d, Middle-dose group 15 g/Kg·d, and Low-dose group 7.5 g/Kg·d) groups, and 12 minutes YQP (High-dose group 30 g/Kg·d, Middle-dose group 15 g/Kg·d, and Low-dose group 7.5 g/Kg·d) groups. All groups were administrated for 7 days. The mice were killed after the third and last days. Viral load of lung tissues were observed by Real-time PCR. Pulmonary index and inhibition rate were calculated by formula. Furthermore, the mice macrophage Ana-1 was infected by FM1, treated with different decocting time YQP drug-containing serum for 24 h. TLR3/4, MyD88, TRAF-6, TRAM and TRIF mRNA were detected by Real-time PCR. TLR3/4 proteins were observed by western blot.

Results: All YQP intervention groups induced a reduction in the viral load and pulmonary index on the third and last days of infection, especially in 3 minutes YQP H/M/L groups and 6 minutes High-dose group. Meanwhile, YQP intervention groups led to significant decrease in TLR3/4, MyD88, TRAF-6, TRAM and TRIF mRNA levels and TLR3/4 proteins, in particular with 3 and 6 minutes YQP groups.

Conclusion: YQP could protect the lung tissue and alleviate the inflammation caused by influenza A virus FM1. The optimal decoction time of YQP was 3to 6minutes on inhibit influenza A virus FM1 in mice.

Keywords

Yinqiao powder, Decoction time, Influenza A virus FM1, Toll-like receptor.

Introduction

Influenza virus is a serious global health threat because of its significant mortality in humans, one of which is influenza a virus. It is an important pathogen of humans responsible for periodic pandemics and annual seasonal epidemics [1]. The first pandemic influenza a (H1N1) of the 21st century occurred unexpectedly in April 2009, which caused 18,449 laboratoryconfirmed deaths worldwide [2]. Due to the good adaptability and variation of influenza A virus, and the frequent emergence of drug resistant strains, no vaccine is available and the use of antiviral drugs is also complicated. In order to better cope with influenza virus, neuraminidase inhibitors such as Oseltamivir (Tamiflu) are promptly delivered to affected countries, where they play important roles in controlling the prevalence.However, when a pandemic virus occurs is uncertain, so large antiviral stockpiles may lose effectiveness, thus resulting in massive economic burden. Traditional Chinese medicine (TCM), which has been commonly used in China for thousands of years, has long records of treating influenza virus and is beginning to play a more critical role in this field [3,4].

YQP originated from Febrile Disease Differentiation, a classic works of TCM, which was written by Jutong Wu in Qing dynasty. As a famous multi-herb prescription in China, YQP is comprised of Flos Lonicerae Japonicae, Fructus Forsythiae, Radix Platycodonis, Radix Et Rhizoma Glycyrrhizae, Spica Schizonepetae, Semen Sojae Praeparatum, Fructus Arctii, Lophatherum Gracile, Mint and Rhizoma Phragmitis. Currently, clinical reports about YQP are increasing. It has been widely used in febrile infectious diseases and prevalence of influenza [5,6]. In the annotations, Jutong Wu wrote “as soon as the aroma comes out, start taking herbal, don’t long time decoction”. The key to get curative effect is decocting time [7]. But there is no quantitative standard until now, how long is aroma out and the exactly decocting time? Thus, this study aimed to determine the optimal decoction time of YQP on fight the prevalence of influenza.

Materials and Methods

Animals

Male BALB/c mice (18-20 g, SPF) were purchased from Beijing Vital River Laboratory Animal Technology Co., Ltd. (China, license number: SCXK (Jing) 2012-0001). Fifty male Sprague-Dowley (SD) rats were obtained from the Laboratory Animal Center, Hebei Medical University (China, license number: 1412004). They were all housed in a 12 h light/dark cycle and had access to the standard water and food ad libitum. The study experiments were conducted in accordance with the guidelines of the local Laboratory Animal Care Committee.

Virus and cells

Influenza A virus FM1 was provided by the National Institute for Viral Disease Control and Prevention (China). It was propagated in the allantoic cavity of embryonated eggs. The murine macrophage Ana-1 was obtained from the Cell Bank of the Chinese Academy of Sciences (Shanghai, China). Ana-1 cells were maintained in RPIM-1640 (Gibco, USA) medium with 10% heat-inactivated fetal bovine serum (Hangzhou Sijiqing, China). The cells were kept in an incubator containing 5% CO2 at 37°C.

Preparation of YQP decoction

YQP, consisting of ten herbs, was provided by the TCM pharmacy of the Fourth Hospital of Hebei Medical University. All medicinal plants were pulverized to powder using a mechanical blender according to the original proportion. 50 g, 100 g, and 200 g of powder were prepared and boiled respectively for 3 mins, 6 mins and 12 mins with 200 ml of distilled water.

Animal experiments

After a 3 d acclimation period, the BALB/c mice (N=144) were random divided into twelve groups (blank control group, model control group, tamiflu (27.5 mg/Kg) group, 3 min YQP (High-dose group 30 g/Kg·d, Middle-dose group 15 g/Kg·d, and Low-dose group 7.5 g/Kg·d) groups, 6 min YQP (Highdose group 30 g/Kg·d, Middle-dose group 15 g/Kg·d, and Low-dose group 7.5 g/Kg·d) groups, and 12 min YQP (Highdose group 30 g/Kg·d, Middle-dose group 15 g/Kg·d, and Low-dose group 7.5 g/Kg·d) groups) (n=12). In addition to the blank control group, all mice were slightly anesthetized by the inhalation of diethyl ether and intranasally infected with 15LD50IV FM1 (0.05 mL). After virus inoculation 24 h, YQP groups were treated with different doses and decoction times of YQP (0.5 mL) once daily for seven days. Tamiflu (0.2 ml/10 g) was given as a positive control group. Tamiflu was purchased from Roche Pharmaceutical (Shanghai, China). The blank and model control groups were injected with saline at the respective time points. Six mice per group were killed to obtain lung tissue on day 3 and 7 of treatment. The lung tissues were removed, weighed and preserved in liquid nitrogen. Viral load of lung tissues were observed by Real-time PCR. The pulmonary index and inhibition rate were calculated as: Pulmonary index=lung weight (g)/body weight (g) × 100%. Pulmonary index inhibition rate=(mean index of model control group - mean index of YQP-treated group)/mean index of model control group× 100%.

Preparation of YQP drug-containing serum

Fifty male rats were divided into ten groups using a random number table with 5 rats in each group. YQP-treated groups (3 min YQP H/M/L, 6 min YQP H/M/L, and 12 min YQP H/M/L groups) received gavage by twice every day (each 2 ml) for 5 days according to clinical equivalent dose of 10 times. Normal control group received the same volume of normal saline. Blood was obtained from the abdominal aorta at 1h after the last intragastric administration, stored at 4°C for 1h, and centrifuged at 3000 r/min for 15 min. The serum was sterilized and inactivated at 56°C for 30 min, followed by filtration through a 0.2 μm mesh, and stored at -20°C.

Cells studies

Ana-1 cells (1 × 105 cells/ml) were cultured in 24-well plastic plates for 24 h and inoculated with 0.5 ml per well of influenza a virus FM1, except for normal control group. After 1 h for virus absorption, the solution was removed and replaced with 1 ml of medium containing different doses and decoction times of YQP serum. After incubation at 37°C for 24 h, the solution was removed and the cells were collected for using subsequent tests.

Quantitative real-time PCR

Viral load of lung tissues and expression of six genes were observed by a quantitative real-time PCR assay. The GAPDH was used as an endogenous control. All primer sequences used in this study were list in Table 1. Total RNA was extracted from the lung tissues and Ana-1 cells, and subsequently reverse transcribed to cDNA. qRT-PCR was performed on an ABI 7500 Real-Time PCR System (Applied Biosystems Life Technologies, USA). The PCR conditions were as follows: 10 min at 95°C, followed by 40 cycles of 5s at 95°C, and 34 s at 60°C. Gene expression levels were calculated using the 2ΔΔCt method.

Gene Primer Sequence
MyD88 PCR-F CCA GAG TGG AAA GCA GTG TC
PCR-R GTC CTT CTT CAT CGC CTT GT
TLR3 PCR-F AGTGCCGTCTATTTGCCACACA
PCR-R AACAGTGCACTTGGTGGTGGAG
TLR4 PCR-F ATT CCT GCA GTG GGT CAAGG
PCR-R ACA ATT CCA CCT GCT GCC TC
TRAF-6 PCR-F ATAAGGGATGCAGGTCACAAATG
PCR-R TCCTCAAGATGTCTCAGTTCCAT
TRIF PCR-F CCACGTCCTACATCTGCAGCTACCA
PCR-R AACAGCATCTGCAGCTACCA
TRAM PCR-F ATAAGTGCCCCCTTTCTTCT
PCR-R CCTCGTCGGTGTCATCTTCT
FM1 PCR-F GAGAAAGAAGTCCTTGTGC
PCR-R TCTATCATTCCAGTCCATCCC
GAPDH PCR-F AAGGTGAAGGTCGGAGTCAAC
PCR-R GGGGTCATTGATGGCAACAATA

Table 1. qRT-PCR Primers.

Western blotting

TLR3/4 proteins were observed by western blot. Total extracted protein lysates from Ana-1 cells were prepared by standard procedures, and protein concentration was determined by BCA protein assay kit (Beyotime, Shanghai, China). 50 μg of protein per lane was separated by 10-12% SDS-PAGE, and transferred onto PVDF membranes. The membrane was incubated with the TLR3, TLR 4 or β-actin antibody (Santa Cruz Biotechnology, USA), and detected by the Odyssey twocolor infrared imaging system.

Statistical analysis

All statistical analyses were carried out using Statistical Analysis System V8 (SAS Institute Inc. USA). Data were presented as Mean ± SD. Multiple comparisons between groups were performed using one-way analysis of variance (ANOVA) followed by the Bonferroni correction, and P<0.05 was considered statistically significant.

Results

Effects of different YQP-treated groups in vivo

Influenza a virus FM1 leads to high lung viral load and pneumonia, so the efficacy of treatment was evaluated on the pulmonary index, inhibition rate of index and viral load. The statistical analysis showed that different YQP-treated groups displayed a protective effect on FM1 mice. Compared with model control group, YQP-treated groups (6 min High-dose group, and 3 min YQP H/M/L) significantly reduced the pulmonary index on the third day after infection (P<0.05), and inhibition rate of lung index was 21.53%, 24.17%, 21.57%, and 22.59%, respectively. In the YQP-treated groups, compared with 12 min groups, the above four groups had statistical significance. There was no difference compared with tamiflu group. On the last day after infection, the pulmonary index was reduced in all YQP-treated groups, especially in 3 min High-dose group. Inhibition rate of 3 min High-dose group was 30.34%, compared with 32.92% in tamiflu group, had equivalent efficacy (Tables 2A and 2B).

Group (n=6) Pulmonary index Pulmonary index inhibition (%)
blank control group 0.62 ± 0.05* -
model control group 1.14 ± 0.09 -
Tamiflu group 0.87 ± 0.06* 23.29
12 min low-concentration 1.03 ± 0.01 8.87
mid-concentration 1.01 ± 0.08 11.30
high-concentration 1.02 ± 0.01 10.38
6 min low-concentration 0.98 ± 0.13 13.47
mid-concentration 0.94 ± 0.07 17.04
high-concentration 0.89 ± 0.19*# 21.53
3 min low-concentration 0.88 ± 0.05*# 22.59
mid-concentration 0.89 ± 0.03*# 21.57
high-concentration 0.86 ± 0.03*# 24.17

Table 2A. Different YQP-treated groups displayed a protective effect on FM1 mice (the third day).

Group (n=6) Pulmonary index Pulmonary index inhibition (%)
blank control group 0.59 ± 0.03*
model control group 1.87 ± 0.45
Tamiflu group 1.26 ± 0.20* 32.92
12 min low-concentration 1.57 ± 0.20* 16.25
mid-concentration 1.55 ± 0.07* 17.07
high-concentration 1.55 ± 0.14* 17.39
6 min low-concentration 1.46 ± 0.19* 22.08
mid-concentration 1.44 ± 0.15* 23.23
high-concentration 1.40 ± 0.12* 25.25
3 min low-concentration 1.37 ± 0.14* 27.13
mid-concentration 1.33 ± 0.24* 28.98
high-concentration 1.31 ± 0.42* 30.34

Table 2B. Different YQP-treated groups displayed a protective effect on FM1 mice (the last day).

Viral load of lung tissues were observed by Real-time PCR. The results showed that YQP could reduce viral load in all treatment groups on the third and last day after infection (P<0.05). There was no significantly difference compared with tamiflu group. In the YQP-treated groups, compared with 12 min the same dose group, every dosage of 3 min and 6 min groups had reduced on the last day, especially in 3 min Highdose group (72.66%; 537111.33 ± 51527.89). Protective effect was found in all YQP-treated groups, and the degrees of protection were different depending on the decoction time (Tables 3A and 3B).

Group (n=6) Viral load Inhibition (%)
blank control group - -
model control group 28059.33 ± 9032.42 -
Tamiflu group 12058.00 ± 2940.84* 57.03
12 min low-concentration 20868.67 ± 8510.34* 25.63
mid-concentration 19873.50 ± 8691.19* 29.17
high-concentration 20161.00 ± 8231.43* 28.15
6 min low-concentration 18801.50 ± 7285.16* 32.99
mid-concentration 16707.50 ± 6535.86* 40.46
high-concentration 17757.17 ± 7049.35*#∆ 36.72
3 min low-concentration 15119.00 ± 5075.64*#∆ 46.71
mid-concentration 14350.83 ± 4949.68*#∆ 48.86
high-concentration 14034.83 ± 4409.83*#∆ 49.98

Table 3A. Effects of YQP-treated groups on viral load (the third day).

Group (n=6) Viral load Inhibition (%)
blank control group - -
model control group 1964362.67 ± 197008.62 -
Tamiflu group 515668.50 ± 68434.34* 73.75
12 min low-concentration 1258829.83 ± 387044.23*# 35.92
mid-concentration 1200039.33 ± 188136.68*# 38.91
high-concentration 975541.33 ± 112000.67*# 50.34
6 min low-concentration 1005029.67 ± 75781.29*∆ 48.84
mid-concentration 794515.50 ± 117875.53*∆ 59.55
high-concentration 596549.83 ± 88597.50*∆ 69.63
3 min low-concentration 638064.17 ± 60221.34*∆# 67.52
mid-concentration 566836.00 ± 73037.67*∆# 71.14
high-concentration 537111.33 ± 51527.89*∆ 72.66

Table 3B. Effects of YQP-treated groups on viral load (the last day).

Effects of different YQP-treated groups in vitro

Ana-1 cells were successfully infected with influenza A virus FM1 and incubated in medium with YQP serum containing various decoction times and doses for 24 h. It was shown that YQP serum decreased the expression of TLR4/MyD88 dependent and non-dependent pathway (Tables 4A and 4B). Compared with blank control group, the expression of TLR4/ MyD88/TRAF-6 and TLR3/TRAM/TRIF in model control group was significantly increased (P<0.05). YQP intervention groups reduced the expression of TLR4/MyD88/TRAF-6 and TLR3/TRAM/TRIF, especially in 3 min groups and 6min High-dose group (P<0.05). Thus, we further assessed the protein levels of TLR3/4 by western blot. The data showed that TLR3 protein level in 6min Middle-dose group was significantly down-regulated (P<0.05, 0.232 ± 0.059). Meanwhile, compared with model control group, TLR4 protein level was significantly down-regulated in 3 min and 6 min groups (P<0.05) (Table 5 and Figure 1). In the YQP intervention groups, compared with 12 min the same dose group, 3 min High-dose group and 6 min YQP H/M groups significantly decreased the protein expression of TLR4 (0.276 ± 0.021, 0.250 ± 0.019, and 0.269 ± 0.017, respectively).

Group TLR4 MyD88 TRAF-6
blank control group 1.021 ± 0.011* 1.072 ± 0.058* 1.031 ± 0.037*
model control group 3.899 ± 0.092 3.807 ± 0.069 4.055 ± 0.150
12 min low-concentration 3.453 ± 0.080* 3.479 ± 0.058* 3.652 ± 0.093*
mid-concentration 3.425 ± 0.077* 3.300 ± 0.086* 3.611 ± 0.077*
high-concentration 3.406 ± 0.073* 3.201 ± 0.077* 3.601 ± 0.115*
6 min low-concentration 3.233 ± 0.124* 3.089 ± 0.102* 3.471 ± 0.073*
mid-concentration 3.146 ± 0.174* 2.868 ± 0.099* 3.297 ± 0.091*
high-concentration 2.919 ± 0.086* 2.770 ± 0.167* 3.008 ± 0.106*
3 min low-concentration 2.799 ± 0.111* 2.386 ± 0.063*∆ 2.897 ± 0.102*
mid-concentration 2.237 ± 0.094*∆ 2.195 ± 0.068*∆ 2.424 ± 0.098*∆
high-concentration 2.194 ± 0.125*∆ 2.121 ± 0.092*∆ 2.380 ± 0.057*∆

Table 4A. Effects of YQP serum on TLR4/MyD88 dependent pathway.

Group TLR3 TRAM TRIF
blank control group 1.018 ± 0.007* 1.043 ± 0.041* 1.059 ± 0.043*
model control group 3.845 ± 0.086 3.786 ± 0.319 4.018 ± 0.144
12 min low-concentration 3.349 ± 0.069* 3.394 ± 0.175* 3.422 ± 0.125*
mid-concentration 3.324 ± 0.045* 3.279 ± 0.167* 3.258 ± 0.155*
high-concentration 3.293 ± 0.024* 3.108 ± 0.127* 3.077 ± 0.122*
6 min low-concentration 3.133 ± 0.052* 2.836 ± 0.105* 2.993 ± 0.170*
mid-concentration 3.076 ± 0.063* 2.690 ± 0.129* 2.746 ± 0.099*
high-concentration 2.921 ± 0.055*∆ 2.573 ± 0.075* 2.503 ± 0.100*∆
3 min low-concentration 2.847 ± 0.066*∆ 2.333 ± 0.097*∆ 2.301 ± 0.127*∆
mid-concentration 2.255 ± 0.044*△ 2.128 ± 0.126*△ 2.000 ± 0.199*△
high-concentration 2.157 ± 0.049*△ 1.996 ± 0.141*△ 1.925 ± 0.229*△

Table 4B. Effects of YQP serum on TLR4/MyD88 non-dependent pathway.

Group TLR3/β-actin TLR4/β-actin
model control group 0.771 ± 0.028 0.685 ± 0.018
3 min low-concentration 0.801 ± 0.012 0.305 ± 0.019*
mid-concentration 0.712 ± 0.020 0.291 ± 0.012*
high-concentration 0.770 ± 0.024 0.276 ± 0.021*∆
6 min low-concentration 0.789 ± 0.022 0.333 ± 0.029*
mid-concentration 0.232 ± 0.059* 0.269 ± 0.017∆
high-concentration 0.741 ± 0.024 0.250 ± 0.019*∆
12 min low-concentration 0.744 ± 0.032 0.562 ± 0.024
mid-concentration 0.640 ± 0.050 0.667 ± 0.047
high-concentration 0.650 ± 0.026 0.597 ± 0.027

Table 5. Effects of YQP serum on TLR3/4 protein expression.

biomedres-serum-protein

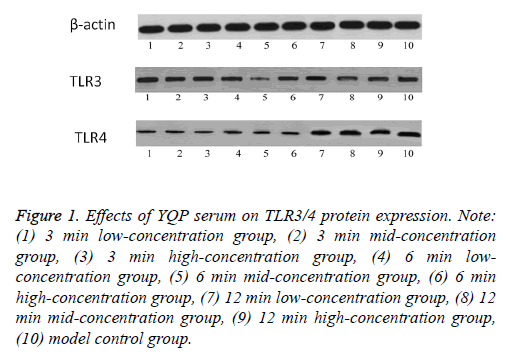

Figure 1: Effects of YQP serum on TLR3/4 protein expression. Note: (1) 3 min low-concentration group, (2) 3 min mid-concentration group, (3) 3 min high-concentration group, (4) 6 min lowconcentration group, (5) 6 min mid-concentration group, (6) 6 min high-concentration group, (7) 12 min low-concentration group, (8) 12 min mid-concentration group, (9) 12 min high-concentration group, (10) model control group.

Discussion

Influenza virus, one of the major pandemic diseases around the world, is a serious public health problem. At present, only M2 proton channel blockers and neuraminidase inhibitors (amantadine and oseltamivir) are used in clinic to against the virus. It brought a massive economic burden. Furthermore, evidence shows that influenza virus is becoming resistant to these drugs [8-10]. TCM, is safe, effective, and low cost, has been commonly used to prevention and treatment of various diseases for thousands of years. YQP, a traditional Chinese medicine applied to anemopyretic cold, has been found to possess potent action against influenza based on principles of evidence-based medicine [11]. Beijing Chao-Yang Hospital investigated the efficacy of YQP in the treatment of H1N1 influenza infection. 410 patients with mild symptoms sought to examine the fever-reducing action of YQP. The results showed that patients treated with YQP had a fever for 16 h, and with oseltamivir had a fever for 20 h. Thus, YQP was able to effectively shorter the duration of fever in patients with influenza infection [12]. But this study did not clarify the specific decoction time of YQP.

Our results also indicated that the inhibitory activity of YQP against influenza A virus FM1 in vivo and in vitro. Different YQP-treated groups displayed a protective effect on FM1 mice. The 6 min High-dose group and 3 min each dose groups significantly reduced the pulmonary index and inhibition rate on the third day after infection. On the last day, inhibition rate of 3 min High-dose group was 30.34%, compared with 32.92% in tamiflu group, had equivalent efficacy. According to our results, YQP could reduce viral load of lung tissue in all treatment groups and no significantly difference compared with tamiflu group. Compared with 12 min the same dose group, every dosage of 3min and 6min groups had obviously reduced. The degrees of anti-influenza virus were different depending on the decoction time.

Influenza A virus is a single-stranded RNA virus that causes severe respiratory tract infection, especially for elderly individuals and immunocompromised patients [13,14]. Tolllike receptor (TLR) plays a critical role in the innate immune system. TLR4 is activated during influenza A virus infection, and is a key contributor to exacerbation of disease. Both TLR4/ MyD88 dependent pathway (TLR4/MyD88/TRAF-6) and MyD88 independent pathway (TLR3/TRAM/TRIF) may play important roles in inflammation and disease caused by virus infection [15-18]. Kegan Liyan oral liquid (KGLY), a Chinese prescription modified from classic formulas YQP and Shen Jie San, may be a potential therapeutic agent for acute lung injury due to suppression of oxidative stress and inflammatory response, inhibition of TLR4-mediated NF-κB activation, and down-regulation of MMP9 expression [19]. Furthermore, it was reported that Yinhuapinggan granule, a Chinese medicine based on Ma Huang Tang, has antiviral effects in IFV-infected mice, which is associated with the inhibition of the TLR4- MyD88-TRAF6 signal pathway. The results cited thus far indicate that TCM has a very well antiviral effect [20]. These findings suggest that YQP serum intervention groups decreased the expression of TLR4/MyD88/TRAF-6 and TLR3/ TRAM/TRIF pathway, especially in 3min groups and 6 min High-dose group.

Conclusions

We concluded that 3 to 6 min of decoction time is more effective in inhibiting the influenza virus and more likely to be the optimal decoction time of YQP for clinical use. However, these findings are preliminary, and the special mechanism of different decoction time of YQP will need to be further investigated.

Acknowledgement

This work was supported by grants from the National Natural Science Foundation of China (no.81202679)
