A novel privacy preserving visual cryptography based scheme for telemedicine applications

Hare Ram Sah1*, G. Gunasekaran2 and Latha Parthiban3

1Faculty of Computer Science and Engineering, Sathyabama University, Chennai, India

2Department of Computer Science and Engineering, Meenakshi College of Engineering, Chennai, India

3Department of Computer Science, Pondicherry University CC, Pondicherry, India

*Corresponding Author:
Hare Ram Sah
Faculty of Computer Science and Engineering
Sathyabama University, Chennai, India

Accepted date: July 28, 2017

DOI: 10.4066/biomedicalresearch.29-17-519

Visit for more related articles at Biomedical Research

Abstract

With huge quantity of patient’s medical images to be shared between specialists and clinics for improving medical diagnosis, need for privacy protection of patient details has increased. To achieve this, care must be taken that during reception, image quality must be preserved and retrieved image should be error free. In this paper, a unique concept of tiling has been used on image patterns using visual cryptography to achieve privacy preservation. The medical image is partitioned into frames using the concept of rhombus and in the deformed image tiles are formed within the different partitions, which are transmitted along with encrypted stegano-tiles. The reconstruction of original image is obtained by stacking the tiles and this error free methods performance is tested using multi scale structural similarity index and CUDA enabled GPUs.

Keywords

Visual cryptography, Tiling, Rhombus, Telemedicine

Introduction

A tiling can be periodic or non-periodic and periodic is one in which image can outline a region that tiles the plane by translation that is, by shifting the position of the region without rotating or reflecting it. Original image and the tiled image are in the same size. Hwang proposed the efficient watermark method based on Visual Cryptography (VC) and the watermark pattern can be retrieved without any information about original image [1]. Qi proposed a method to recover the secret image which is lossless [2]. Soman et al. proposed two XOR-based VC algorithms, viz., XOR-based VC for general access structure and adaptive region incrementing method [3]. Ananth et al. proposed research design that implements a barcode encoder based steganography method [4]. Linju et al. proposed the sealing algorithm where two secret images are sent at the same time by converting them to halftone representations [5]. Deepika et al. proposed a scheme to share a secret among ‘n’ participants, i.e. an ‘n’ out of ‘n’ secret sharing scheme, based on a new number system called Permutation Ordered Binary (POB) number system and Chinese Remainder Theorem (CRT) [6]. Niimi et al. proposed a method for preserving privacy in electronic health record [7]. Parallel cryptosystem is introduced, using which all subtiles are transmitted at the same time and in, an algorithm to for encryption of secret images into meaningful images is proposed [8,9].

Proposed Methodology

The proposed privacy preserving method is achieved by partitioning the medical image by tiling, applying stegano algorithm followed by simple encryption which is decrypted in receiving end as shown in Figure 1.

biomedres-Proposed-methodology

Figure 1: Proposed methodology.

Partitioning the medical image by tiling

Tiling is a way of arranging identical plane shapes, so that they completely cover an area without overlapping. The rhombus based partition is placed over the secret image. The secret image is divided into six subsets based on the angles used in Figure 2 and partitioned as shown in Figure 3.

biomedres-secret-image

Figure 2: Rhombus and its application to the secret image.

biomedres-Partitioned-subset

Figure 3: Partitioned subset (listed from 1 to 6 in order).

Applying stegano algorithm to generate stegano tiles

The steps for stegano algorithm are given by:

• Introduce lamps in secret figure.

• Label the edges of the subsets as Hik, i=1 to L (number of subsets) and k=1 to number of edges in ith tile.

• The connecting among subsets specified in the stegano tile.

Lamps are introduced to rhombus shape and the generated five lamps and labelling process are shown in Figure 4. The generated stegano tile is shown in Figure 5.

biomedres-labelled-tiles

Figure 4: Lamps and labelled tiles.

biomedres-Generated-stegano

Figure 5: Generated stegano tile.

Encryption of stegano tile

The encryption is based on the attribute of database and if the data type of attribute is text, then it is encrypted into numerical value and if the data type of attribute is numeric, then it is encrypted into text as in Table 1.

Text attribute Key Text attribute Key Text attribute Key Text attribute Key Text/Numeric attribute Key Numeric attribute Key
A 1 G 7 M 13 S 19 Y 25 4 E
B 2 H 8 N 14 T 20 Z 26 5 F
C 3 I 9 O 15 U 21 0 A 6 G
D 4 J 10 P 16 V 22 1 B 7 H
E 5 K 11 Q 17 W 23 2 C 8 I
F 6 L 12 R 18 X 24 3 D 9 J

Table 1. Encryption of text and numeric attribute.

The attribute based encryption technique is applied to the Figure 6 and the encrypted stegano tile is shown in Figure 6. This encrypted stegano tile along with labelled tiles are received in the receiving end which is decrypted (same as Figure 5) and help in the reconstruction of the original image.

biomedres-Encrypted-stegano

Figure 6: Encrypted stegano tile.

Results and Discussions

The proposed algorithm is tested on the CT image (Figure 7) which is partitioned based on the procedure in Figure 3.

biomedres-Secret-medical

Figure 7: Secret medical image and its partitioned subsets.

The generated tiles are labelled based on rhombus shape as shown in Figure 8 which is then encrypted (Figure 6) and transmitted. The received stegano tile in encrypted form is shown in Figure 9 and decrypted stegano tile is shown in Figure 10. In reconstruction process (Figures 11a and 11b), the labelled tiles are joined in step by step manner from decrypted stegano tile (Figure 6) to obtain the secret image.

biomedres-medical-image

Figure 8: Labelled tiles of medical image.

biomedres-stegano-tile

Figure 9: Received stegano tile.

biomedres-Decrypted-stegano

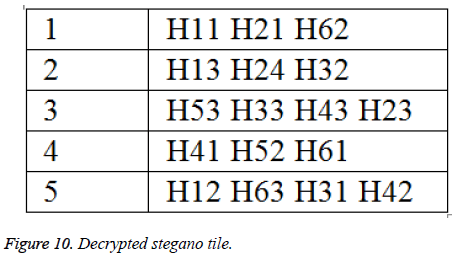

Figure 10: Decrypted stegano tile.

biomedres-receiving-end

Figure 11a: Procedure for reconstruction of transmitted medical image in receiving end.

biomedres-Test-images

Figure 11b: Test images, partitioned subsets and image reconstruction from subsets.

The proposed algorithm was tested on the 4 CT medical images (obtained from www.aylward.org/notes/open-accessmedical-image-repositories) and the reconstructed images are compared with original images in terms of Multi-scale Structural Similarity Index (SSIM). Table 2 shows the SSIM obtained for the 4 test images.

Test Image SSIM
1 0.9878
2 0.9912
3 0.9868
4 0.9976

Table 2. SSIM results for the test images.

The proposed method is not dependent on the order of arrival of tiles like the conventional method as in Figure 12 (a). NVIDIA’s Tesla GPUs reconstruction time performance of the partitioned subsets using encrypted stegano tile was found to be only 72 seconds against 368 seconds taken by Intel’s core 2 Extreme as shown in Figure 12 (b).

biomedres-clock-cycle

Figure 12: (a) Transmission clock cycle; (b) Reconstruction time.

Conclusions

In this paper as reconstruction of original medical image is done by stacking the stegano tiles, it is an enhanced privacy preserving lossless technique for e-health applications. The method is easy to implement and does not need complicated cryptographic computations. The received images are found to have multi scale structural similarity nearing 1. The reconstruction time was also found to be very less when CUDA enabled GPUs were used. Future work is to concentrate on other efficient tiling shapes and use other Testla processors for faster reconstruction time.

Acknowledgement

The authors would like to thank Pondicherry University for allowing access to CUDA enabled GPU computing facility for the research work.
