Research Article - Biomedical Research (2018) Volume 29, Issue 18
Accepted on July 12, 2018
The quantification and analysis of the human transcriptome allows expanding the knowledge of the genomic functioning, especially in body’s parts as complex and important as the human brain. In this way, in silico studies offer the possibility to extract and analyse information contained in databases, at the level of gene expression along the different brain structures. This study aimed to correlate the transcription levels of 38 genes located in the critical region of the chromosome 21 associated with Down syndrome with the cerebral localization and its intervention in the correct operation of different brain substructures. To carry out this, the expression profiles of these genes along 24 substructures of the brain cores and 18 of the Limbic lobe were done, from gene expression data of microarray experiments of DNA, available in the database of the Atlas of the brain of the "Allen Institute for Brain Sciences". It was determined a differential expression of these genes along the analysed structures, in addition to register higher levels of overall transcription in certain areas of the brain, which appear to be associated with different processes of learning and memory. The differential transcription was correlated with the cerebral localization and its potential functional role.
Basal ganglia, Limbic lobe, DNA microarrays, Critical region of Down syndrome, PCP4, KCNJ6, DYRK1A.
The human brain has a wide variety of cells, each of those ones has a single morphophysiology, functionality and connectivity [1,2]. These properties are largely the result of unique combinations of expressed gene products, and its precise regulation is what keeps to a large cerebral homeostasis degree. This approach is useful for understanding the functional circuitry of the nervous system, and thus generates new knowledge about the relationship between genes, brain and behavior [3-5]. Therefore, the analysis of gene expression profiles provides huge information about brain connectivity and its relationship with the higher cognitive functions. As an example there is the influence of genetic factors in understanding the normal brain development and mental disorders [5-8]. Consequently, the cellular diversity of the brain requires a focus on understanding the functional genomics of the nervous system, leading to the incorporation of all these modalities in an overall analysis having the potential to improve the discovery and highlighting its importance in comparison with methods that analyse each mode separately. Data associations between these three approaches are relevant in the study of diseases, since gene expression in the brain plays a key role in the flow of information between brain networks and performing cognitive tasks [3,5].
For that reason, the inherent importance of brain homeostasis and the complexity involved in the development and maintenance of the nervous system can result in a series of neuropathology that lead to changes in brain structure such as decreasing different types of motricity, cognitive impairment, among others . Down Syndrome (DS), which is caused by the total or partial presence of three copies of chromosome 21, is becoming the most frequent aneuploidy leading to vary degrees of cognitive impairment [9-11]. On the other hand, studies of segmental trisomies have allowed to characterize an area within the chromosome called “Critical Region of the Down Syndrome” (DSCR), which is located at the distal end of the long arm of chromosome 21 (21q22.1-22.3), and which contains possible candidate genes whose imbalance of dose could induce marked cognitive deficit, like the other pathologies and traits associated [12-17].
However, the involvement of the DSCR as the sole cause of the symptoms of DS is still a matter of debate. Several studies suggest that this region plays a major role in the genetic interactions that would be related to the pathogenesis of DS [18-20]. In spite of this, the expression of the genes which are found within this region is not fully known in the brain. Therefore, their study in normal human brains could provide a better understanding of their participation in the regulation of all processes that must be performed for proper operation. Additionally, a comprehensive approach would make significant correlations between gene expression and regulation, the function of the nervous system and the resulting phenotype. This would be too informative for neurogenetic and study of brain diseases, especially in the neurological disorders associated with the DS.
Actually, few studies focus on the functional analysis correlation of gene expression in the brain. Moreover, the techniques that have been used, usually cover large regions of the brain creating a difficulty in interpreting data in the substructures, or generally made by a gene at a time, leaving patterns of expression of many genes uncharacterized. As a result, Atlas Allen Human Brain Project has adopted a global approach for understanding the structural and genetic architecture of the brain by generating gene expression profiles obtained from DNA microarrays from post-mortem human brains. In this context, it is possible to extract complete and detailed information on those levels of transcription in different brain structures that can be found in the database of free access of the Allen Brain Atlas . This database contains anatomical and genomic information from human brains, which is supplemented with extra information and set of visualization tools and data mining. Microarray experiments include data of more than 62,000 probes, covering 93% of the 21,245 genes consigned, from which it is possible to obtain information on thousands transcriptional gene referenced with Entrez gene codes.
This study was designed to construct an in silico model of the expression profiles of 38 genes located in the critical region of DS. Data were based to correlate them with the functionality of a healthy human brain of a 55 y old male donor, besides, a network of expression and interaction of these genes with others that expression was built. The results allowed us to approach to a systemic model of expression that can be modified bioinformatically to extrapolate it to what happens in other diseases of the brain, providing a powerful tool for its understanding.
The gene expression levels were calculated from the z-score values of 38 genes DSCR (Annex 1) in different substructures of the basal ganglia and the limbic lobe. These were obtained from the graphical display of the database of the human brain the Allen Institute for Brain Sciences. All procedures used for collecting data are reported extensively in the technical report “Allen Institute for Brain Sciences” .
|Caudate nuclei head-left||CNH-Left|
|Caudate nuclei head-right||CNH-Right|
|Caudate nuclei tail-left||CNT-Left|
|Caudate nuclei tail-right||CNT-Right|
|Nucleus accumulus left||NA-Left|
|Nucleus accumulus right||NA-Right|
|Globus pallidum external left||GPE-Left|
|Globus pallidum external right||GPE-Right|
|Globus pallidum internal left||GPI-Left|
|Globus pallidum internal right||GPI-Right|
|Septal nuclei left||SptN-Left|
|Septal nuclei right||SptN-Right|
|Basal forebrain substantia innominata left||BFbSI-Left|
|Basal forebrain substantia innominata right||BFbSI-Right|
|Amigdala transition zone||ATZ|
|Amigdala basolateral left||ABL-Left|
|Amigdala basomedia right||ABM-Right|
|Central amigdala nucleus||ACN|
|Corto medial amigdala||ACM|
|Left nucleus amigdala||ALN|
|Short insular gyrus||SIG|
|Cyngulate girus, frontal part||CgGf|
|Cyngulate girus, parietal part||CgG-Parietal|
|Dental gyrus left||DG-Left|
|Central area 1 left||CA1-Left|
|Central area 1 right||CA-1 Right|
|Central area 2 left||CA2-Left|
|Central area 2 right||CA-2 Right|
|Central area 3 left||CA3-Left|
|Central area 3 right||CA-3 Right|
|Central area 4 left||CA-4-Left|
|Central area 4 right||CA-4 Right|
|Parahipocampus gyrus left||PHG-Left|
|Parahipocampus gyrus -cos-left||PHG-cos-Left|
|Parahipocampus gyrus right||PHG-Right|
|Parahipocampus gyrus -cos-right||PHG-cos-Right|
Annex 1. Names and symbols of different substructures in limbic lobe and cerebral nuclei. The names were extracted from the Allen Institute for Brain Sciences.
In all cases, the data of each gene of available experiments using different probes was obtained. Standard values (z score) of the expression levels through 24 substructures of the brain nuclei and 18 from the Limbic Lobe (Annex 2) were recorded. These values were recorded in electronic sheets in Excel format for further analysis. Three values were taken at three different points of each substructure and the average z score was regarded as final data.
|Gene||Common||Entrez ID||CA3-left||CA-3 Right||CA4-left||CA-4 Right|
Annex 2. Standard values (z score) of the expression levels through 24 substructures of the brain nuclei and 18 from the limbic lobe.
Protein interaction network and cluster analysis
A network of interaction of proteins encoded by 36 of the DSCR genes with other human proteins in different databases was built through a Cytoscape program version 3.1.1 . Besides, a hierarchical clustering was performed based on the z score of these 36 genes in each cerebral substructure. The test conditions used were the plugin clusterMaker Algorithm maximum link by pairs and metric distance metric Pearson correlation.
For ranking each expression of genes in different brain substructures, a Principal Component Analysis (PCA) for both the limbic lobe and the brain nuclei was performed by reducing the R space of 38 collinear variables to 6 main components (R38>R6) in each area. This analysis was performed using IBM SPSS 20.0.0 program .
DSCR overall transcription of genes in the brain
A differential expression of 38 genes DSCR along different brain substructures, specific and dependent on the associated substructure brain, was determined. In turn it was confirmed the existence of regulation of gene expression dependent on the physiology of each brain area (Figure 1). From the brain areas studied, the caudate nucleus, putamen and globus pallidus are substructures that had a higher level of expression by the majority of genes in the basal nuclei (Figure 1A). The most expressed areas in the limbic lobe were the central and the parahippocampal gyrus (Figure 1B).
Figure 1: Comparison of the total average level of expression of all genes from in each brain substructure. A. Brain nuclei. B. Limbic lobe. The structures most expressed in the basal nuclei were caudate nucleus, putamen and globus pallidus, and for the limbic lobe were the central areas and the parahippocampal gyrus.
The PCA allowed reducing to six components the 38 genes DSCR in each structure. In brain, nuclei represented 79.89% of the variance while the limbic lobe 76.03%. It was observed that the distribution of the 38 DSCR genes was differential in the two brain structures (Figure 2). In brain nuclei component 1 was the most complex, which includes 19 genes, in contrast to the limbic lobe where 19 of the 38 genes DSCR distributed between components 1 and 2 (Table 1).
Table 1. Discrimination on the weight of each of the variables within six components.
In addition, comparative analysis of graphics Biplot establishes two groups of genes having a statistically significant correlation for each structure. At Limbic lobe, the first association is composed by the IGSF5, C21orf88, TRAPPC10, TTC3, B3GALT5, DSCR3, KCNJ15 and C21orf24; and the second by the DSCR1, SIM2, RUNX1, ERG, DSCAM and DSCR4 (Figure 2A) genes. While in brain nuclei, the stronger association included the BACE2, SIM2, ERG, CSTB, PTTG1IP, TMEM50B, TRAPPC10 genes (Figure 2B).
The PCA analysis showed that gene co-expression varies depending on the brain area. Both in brain nuclei and the limbic lobe, two groups presented where the genes that compose them are highly correlated, but all the associations that occur differ in both structures. Similarly, the cluster analysis showed the same pattern of co-expression (Figure 3), leaving also areas of high and low expression mentioned before, and the existence of an opposite expression of certain genes in these two areas.
Protein interaction network

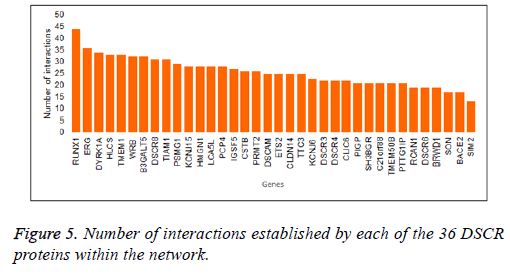

The interaction network showed a master node that stands out within seven DSCR proteins interacting within them and with a variable number of others human proteins. The network showed that in the primary node DYRK1A gene product is found (Figure 4). It had one of the highest values of interactions within the network (Figure 5), and interacts directly with another six proteins DSCR: HMGN1, BRWD1, TTC3, RCAN1, ARE and DCSR3.
In the same way, the top ten GO categories with highest statistical significance in terms of biological process were analysed. As shown in Table 2, most of the proteins studied in the interaction network regulate positively and/or negatively various biological and metabolic processes, mechanisms of apoptosis, modification of macromolecules, among others.
|GO-ID||Description||P-value||Cluster frequency||Total frequency|
|48523||Negative regulation of cellular process||5.35E-17||179/702 (25.4%)||1840/14274 (12.8%)|
|48519||Negative regulation of biological process||1.32E-15||186/702 (26.4%)||2016/14274 (14.1%)|
|6464||Protein modification process||1.49E-13||148/702 (21.0%)||1527/14274 (10.6%)|
|43412||Macromolecule modification||3.63E-13||152/702 (21.6%)||1608/14274 (11.2%)|
|10941||Regulation of cell death||1.13E-12||99/702 (14.1%)||868/14274 (6.0%)|
|43067||Regulation of programmed cell death||1.46E-12||98/702 (13.9%)||861/14274 (6.0%)|
|9987||Cellular process||1.46E-12||553/702 78.7%||9353/14274 (65.5%)|
|42981||Regulation of apoptosis||1.73E-12||97/702 (13.8%)||853/14274 (5.9%)|
|48518||Positive regulation of biological process||3.67E-12||186/702 26.4%||2207/14274 (15.4%)|
|9893||Positive regulation of metabolic process||4.28E-12||108/702 15.3%||1020/14274 (7.1%)|
Table 2. Main GO categories of biological process established in the interaction network.
Until now, many studies have reported in DS mouse models a generalized overexpression of triplicate genes [26,27]. Thus, other researches on human trisomic tissues showed that only a subset of genes of chromosome 21 are over-expressed related to euploid controls, and the set of genes vary between cell types [28,29], indicating that the presence of three copies of a gene does not necessarily result in a global overexpression.
The expression pattern of a gene provides indirect information about its importance at a functional level, but it also provides information about the area in which it is expressed, correlating the importance of the functional role of this structure for the maintenance of homeostasis and efficiency of brain functioning. Thus, our results provided strong evidence that these areas have a marked gene activity, leading to think that they are sites of vital importance in various biological processes.
The caudate nucleus, putamen and globus pallidus are substructures that had a higher level of expression by the majority of genes in the basal nuclei. The caudate nucleus, takes part in the modulation of motion, just as it has been involved in learning and memory. On the other hand, putamen appears to play an important role in operant conditioning learning through reinforcement. Finally, the globus pallidus receives information from the caudate nucleus and the putamen and sends information to the substantia nigra [30,31]. Its function is to relate maintenance of a basal muscle tone for voluntary movements, carrying out precise activities with hands and feet as well as to keep the body in a specific position [32,33]. Moreover, the most expressed areas in the limbic lobe were the central ones and the parahippocampal gyrus, which are closely related substructures in maintaining memory and possible learning centers [34,35]. Studies based on connectivity changes in the brains of patients with DS have shown significant changes in the above-mentioned areas, demonstrating that those are relevant to the emotional and learning processes. Therefore, alterations in the dose of any of these genes in these critical areas would fit with poor cognitive performance of patients with DS .
On the other hand, PCP4 also known as protein 4 Purkinje cells, had the highest level of over expression in brain nuclei and the lower sub-expression in the limbic lobe on all genes analysed. The PCP4 (PEP-19) belongs to a family of proteins involved in a signal transduction of calcium modulating through this interaction calmodulin activity. Erhardt et al. suggested that PCP4 protects cells from induced apoptosis, but their exact functions remain unknown yet [12,37]. It is known to be involved in brain development, being present in almost all regions and most abundant in the cerebellum way; besides that it has a very specific expression pattern in adult neurons [12,38]. A previous study revealed a high expression of this gene in various brain structures between which the putamen and basal forebrain is included , being consistent with the results obtained in this study.
The transgenic mouse models with DS have shown that overexpression of the gene induces PCP4 early neuronal differentiation, in which the additional copy of it, produces a stronger and broader expression in neurons compared with disomic controls. Thus, the highest protein levels have direct consequences in the early stages of differentiation of neurons [12,40]. It is important for proper brain function. We can conclude from our results that a large expression related to learning, memory and motor control structures are crucial for both normal adult brain and it becomes a starting point for linking malfunction or overdose of this gene with possible implications for neurological damage in DS or other neuropathology brains.
The KCNJ6 (GIRK2) gene showed great expression in different limbic lobe substructures related to cognitive processes. It is shown as a mediator of different motor functions, playing a key role in learning and memory . DS studies in mice have shown a high over expression in the frontal cortex and hippocampus, and it has been linked in neurogenesis processes and synapses of the latter, suggesting that cognitive disorders, memory and motors in these mice could be related to over expression or malfunction of this gene [42-44].
Additionally, the increased expression of KCNJ6 has been associated with the deterioration in GABAergic function, which appears to contribute to the mechanisms responsible for the cognitive impairments in DS and mice models. This has led to postulate it as a key gene both, in the contribution cognitive deficits and dysfunction of fine motor skills in DS, and possible investigations of gene therapy [41,44,45].
RCAN1 and DSCR2 genes, showed a remarkable expression in many of the studied substructures allowing postulate that these genes are important for the proper functioning of those regions. RCAN1 (DSCR1) presented a remarkable expression in the central areas, the putamen and globus pallidus. Studies have shown that chronic expression of this gene has been associated with several pathologies among which include Alzheimer's disease, cardiac hypertrophy and conditions related to learning and memory in DS associating this with the deficit occurred in the late phase of long-term potentiation . Similarly, the DSCR2 gene showed an opposite expression between brain nuclei and the limbic lobe, with high activity in the latter. It is known that this gene is an important factor associated with DS, expressing in different tissues and fulfilling various functions that are key in regulating the functioning of chromosome 21 .
In addition, DYRK1A showed a lot of interactions within the protein network. DYRK1A, is a serine/threonine kinase of dual activity which phosphorylates exogenous substrates on serine/ threonine residues, but it has to autophosphorylate on tyrosine residues [15,48,49]. Because of their participation in various structural and functional aspects of the central nervous system, it has been proposed that it could play an important role in the pathogenesis of DS during pregnancy and adult life. These assertions are based on the discovery of a highly characteristic pattern of expression in both fetal and adult tissues [50-52] further that this gene is over expressed in the brains with DS and in Ts65Dn mice . Similarly, other experimental data have suggested that this is a sensitive dose gene, for example the variation in gene copies is accompanied by a corresponding variation. It is important to highlight that seven DSCR proteins composing this master node are widely expressed in the brain; they also have in common to be very important for neurogenesis processes. Therefore, it has been observed that the gene RCAN1 interacts with calcineurin A and inhibits signaling pathways dependent on calcineurin, affecting maybe the central nervous system development. Moreover, it has been found that is over expressed in the brain of fetuses with DS and is involved in the development of Alzheimer's disease in these patients. On the other hand, BRWD1, TTC3 and DSCR3 genes are related to processes of neuronal differentiation, signal transduction and are critical candidates to explain the pathogenesis of DS. Moreover, the HMGN1, BRWD1 and SON genes expressed in brain and interacted with the DYRK1A gene showing a strong correlation between them (group that remains in the heatmap for HMGN1 and SON genes). It has been observed that these three genes are key for the regulation of cell cycle and apoptotic processes, besides being involved in the assembly of components involved in transcriptional activation [18,53,54].
Based on these results and in addition to the great anatomical correlation with the differential expression of genes DSCR, it is possible to state that the deficit in the dosage of any of these genes in the substructures of the brain nuclei and the limbic lobe (especially in regions with higher expression) can be an extremely important fact in the regulation of their associated functions. This lead to dysfunction of learning, memory and motor skills, which are characteristic, observed in varying degrees in the symptoms of DS . Although it is worth noting that the results obtained come from databases, giving a bioinformatics approach which may propose models of the effect of altering gene dosage .
However, the mechanisms involved in the pathogenesis of DS, are still not fully understood, indicating that more studies to elucidate more about the complex biological processes associated with this disorder are needed. Consequently, exploration in databases related to brain gene expression, are a great help to clarify the picture at a genomic and proteomic level, both in normal brain and with DS or other neuropathology
Ethics approval and consent to participate
Availability of data and materials
The datasets supporting the conclusions of this article are available in the Human brain atlas repository, (http:// human.brain-map.org/), and its additional file (Dataset).
The authors declare that there is no conflict of interest regarding the publication of this paper.
We declared that the Universidad del Valle and the Universidad Autonoma de Occidente financed the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.
DF participated in the acquisition of data, analysis and interpretation of data, and was involved in drafting the manuscript. JRO, FGV and AS participated in the design of the study and performed the statistical analysis. KV, JCM and JMS were involved in drafting the manuscript and its critical review. All authors read and approved the final manuscript.
The current work was financially support by a scientific internal call of the Vice-rectory of Investigations of the Universidad del Valle and the Universidad Autonoma de Occidente, Cali-Colombia.
